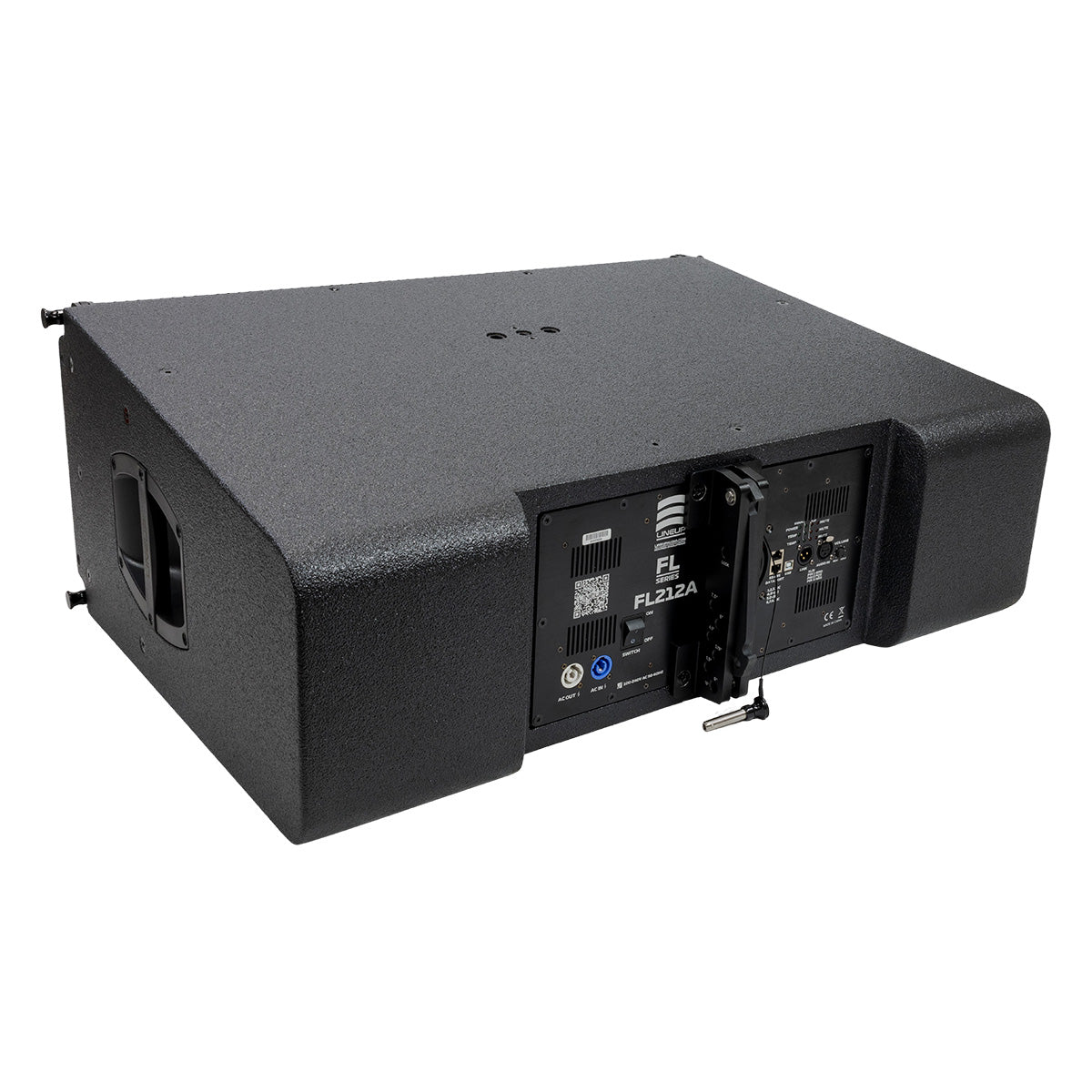

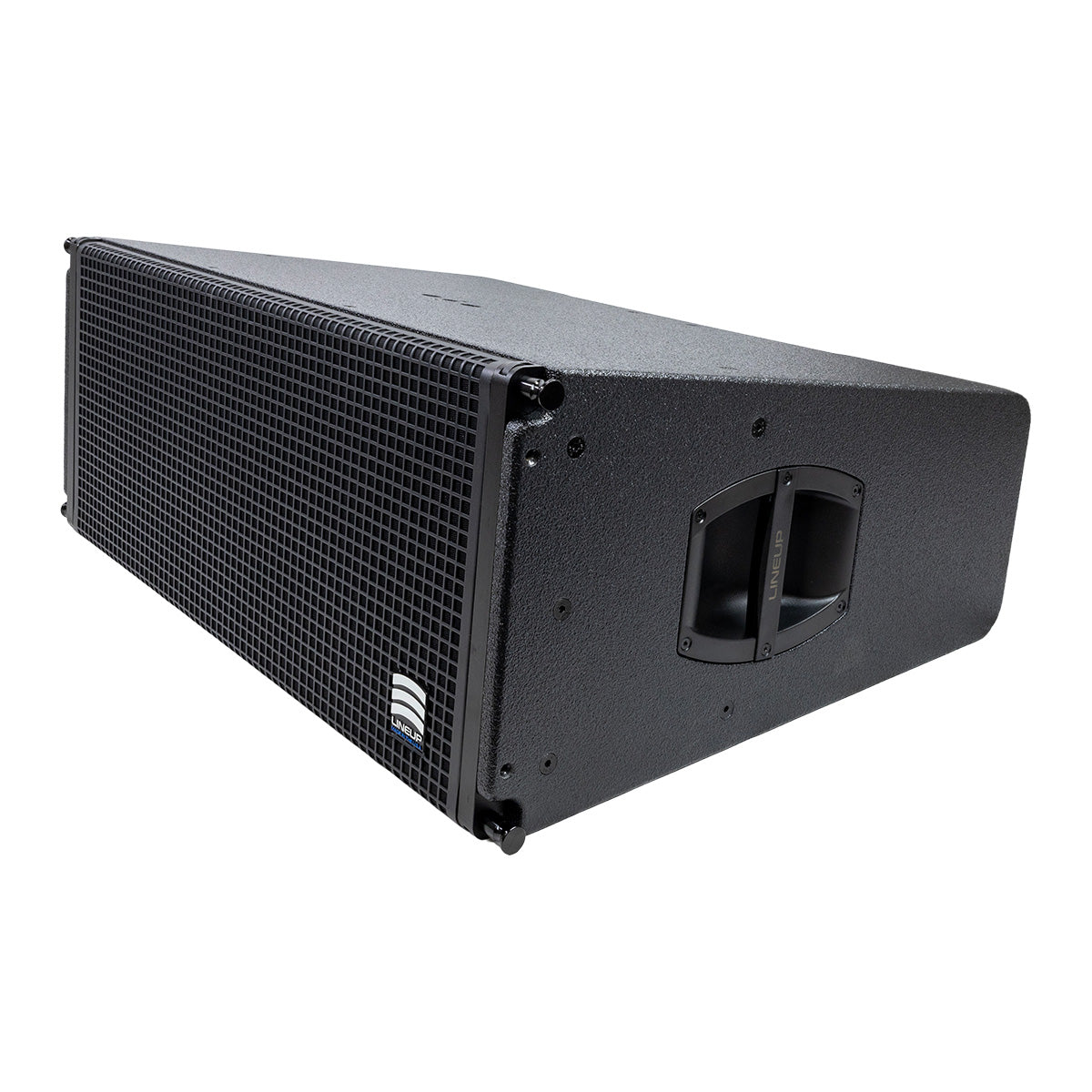

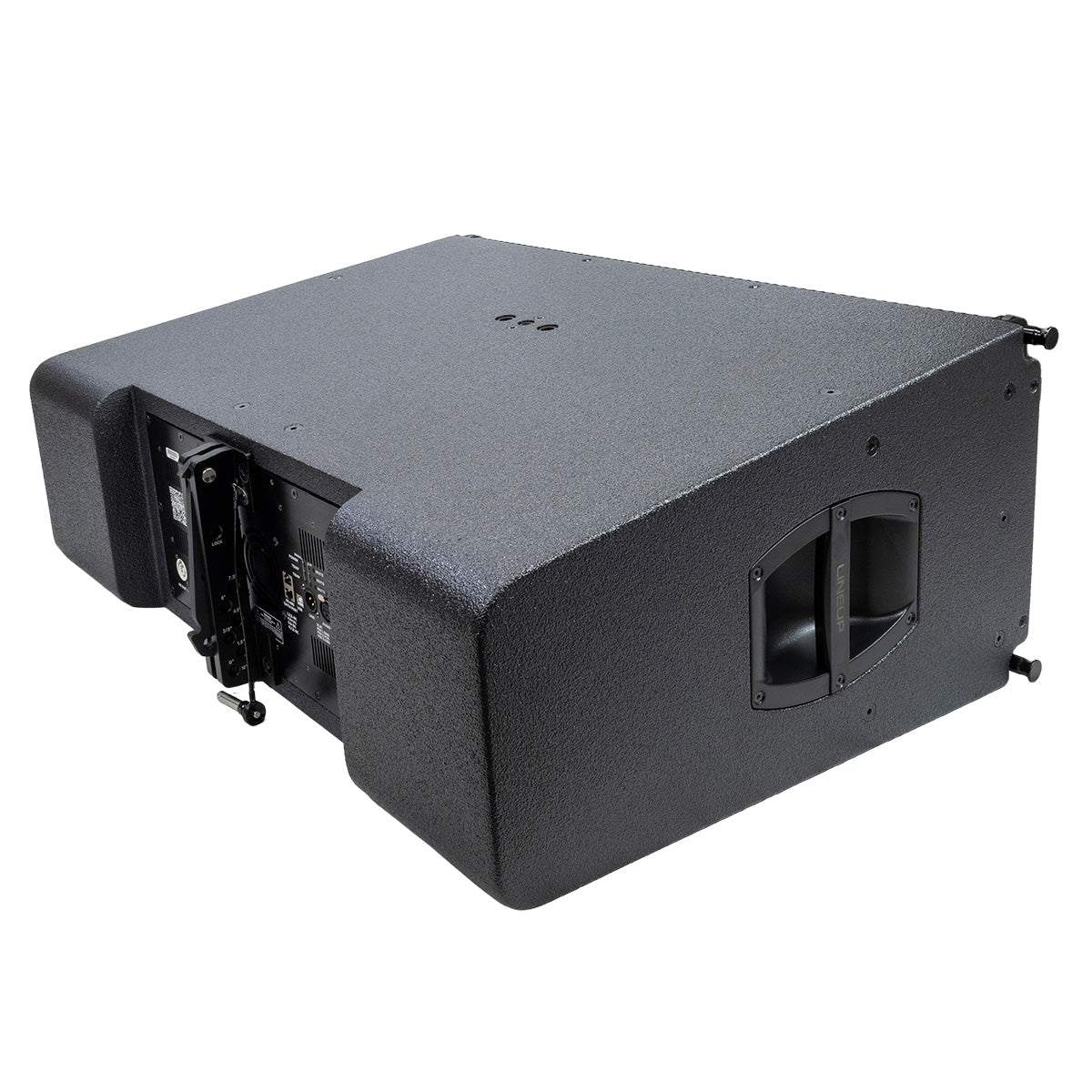

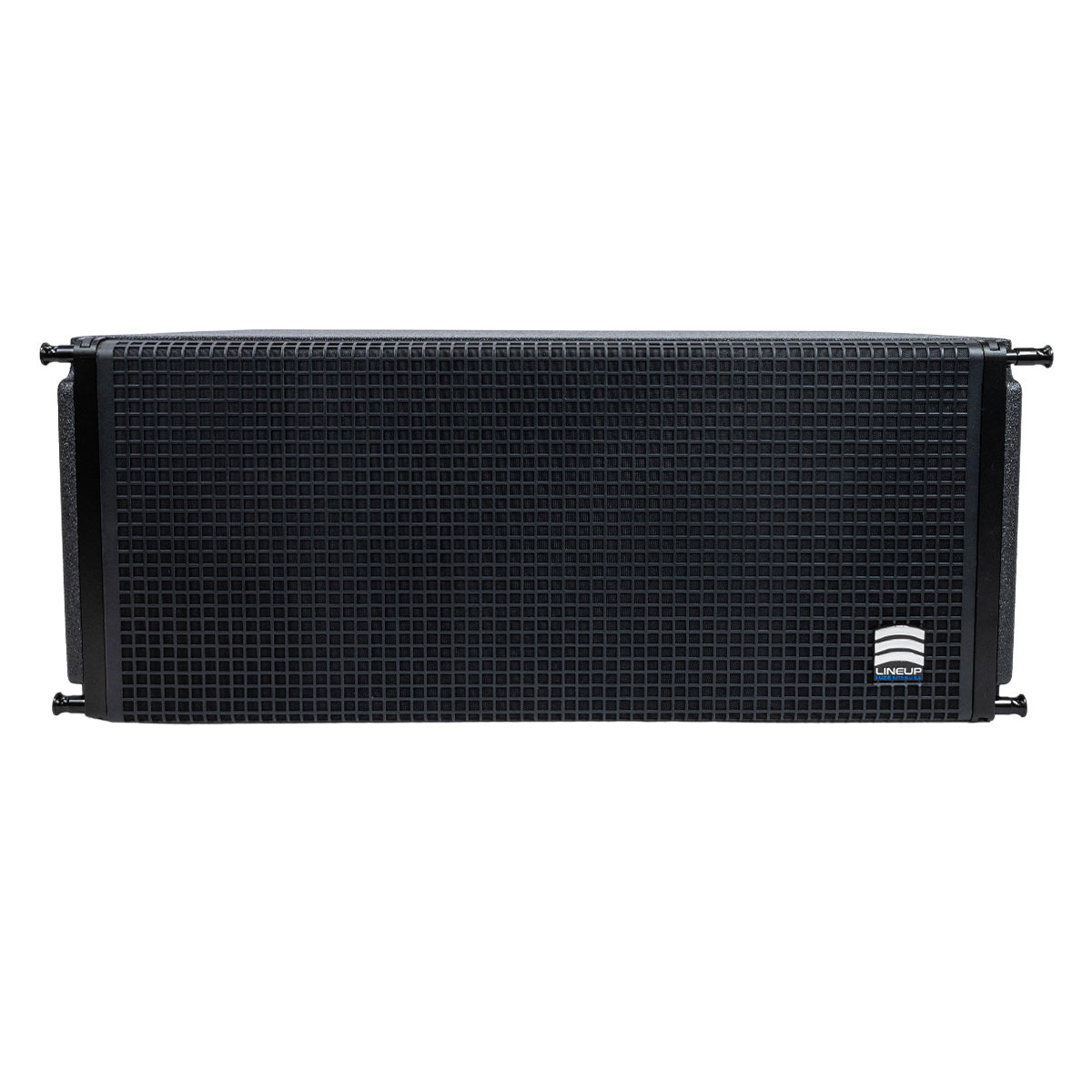

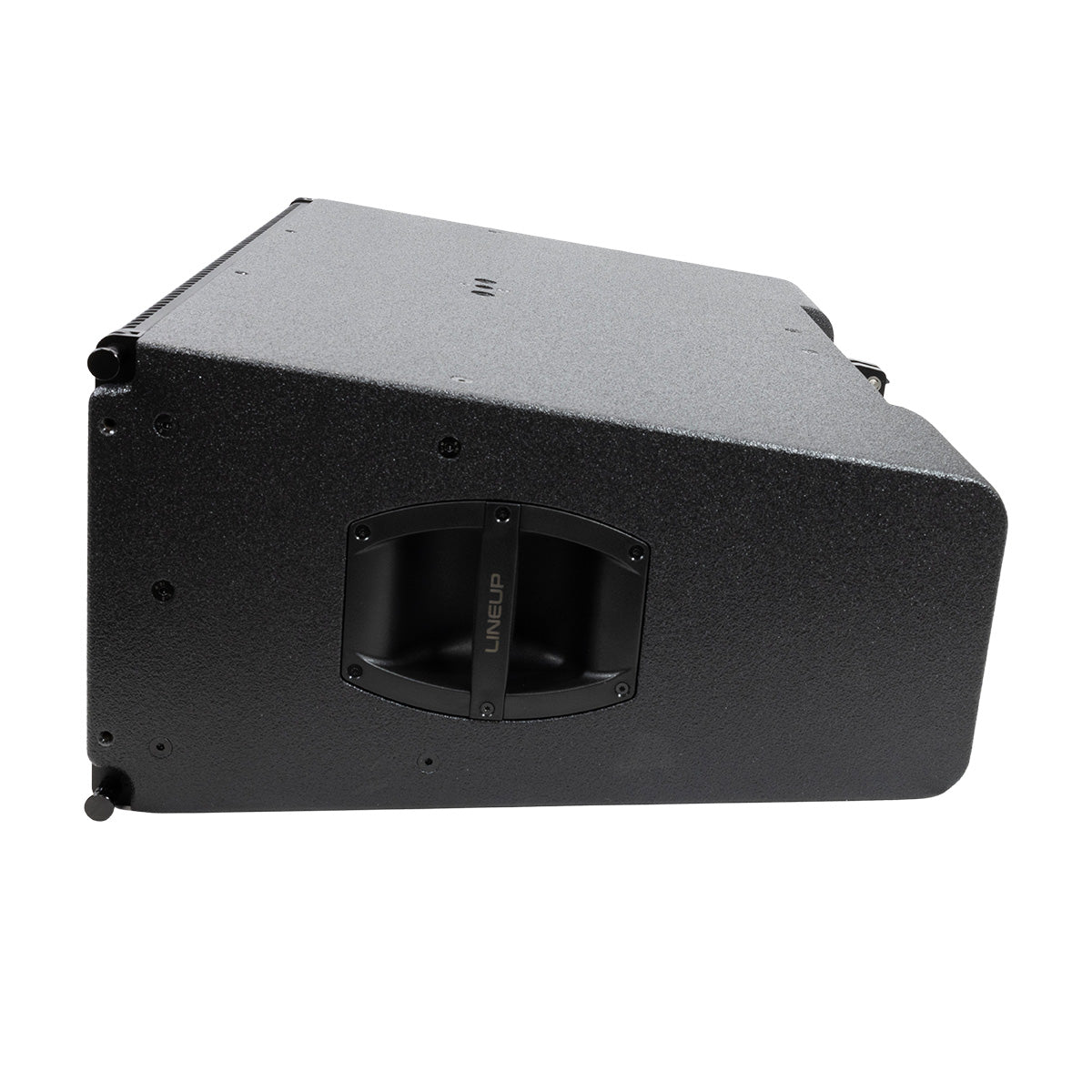

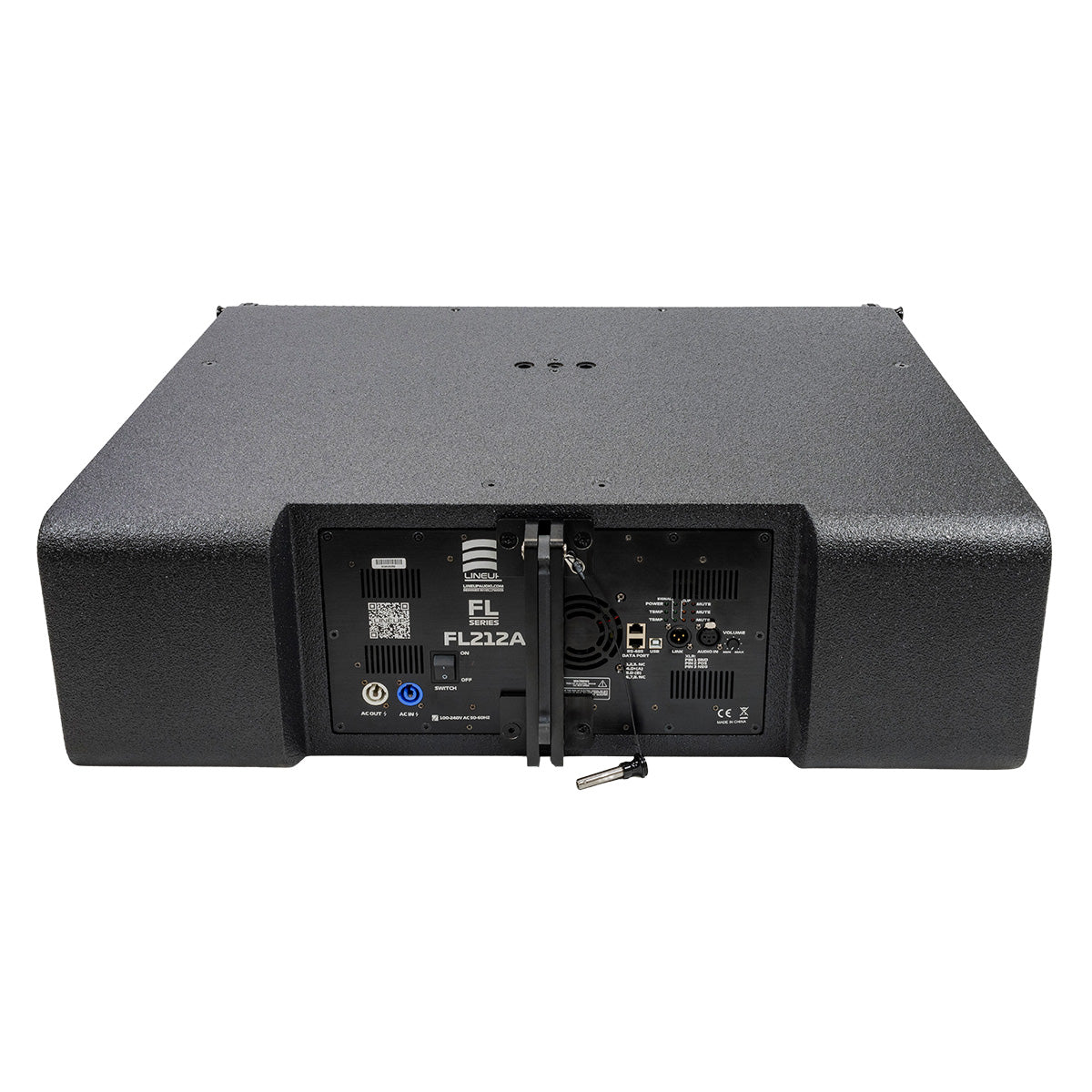

3 Way Hi-Performance Line Array FL212A

Key Features

• 2×12”, 1×10” Neodymium Components
• 2×3” Neodymium Drivers
• 2300 Watt RMS
• 4600 Watt MAX
• 124 dB SPL Power Rated
• Nominal impedance: 8 Ohms
• Max Power Consumption: 16 A
• Operating Voltage: 100V-240V
• Frequency Response: 44Hz-20KHz ± 1dB
• 96 KHz Signal Sampling DSP – 56 BIT
• USB & RS-485 DSP Control
• Waterproof Paint

RMS/PEAK

LF:7200W/4800W – MF:800W/l600W – HF:300W/600W

Amplifier

3 channels Class D
Intermodulation Distortion: <0.05%
Protection: short, DCP, OVP, UVP, OCP, OTP
Cooling System variable speed fan
Rated max current: 76A

Connections

Signal input: NEUTRIK Female XLR
Signal Output: NEUTRIK Male XLR
Power Input Powercon NAC3MPA
Power Output NAC3M PB

Dimensions

Dimension (HxWxD): 360x860x650 mm
Weight: 60 Kg (132 lbs)

Download Technical Info

Download DSP Software (Windows Only)
